U.S. Army M110 SASS

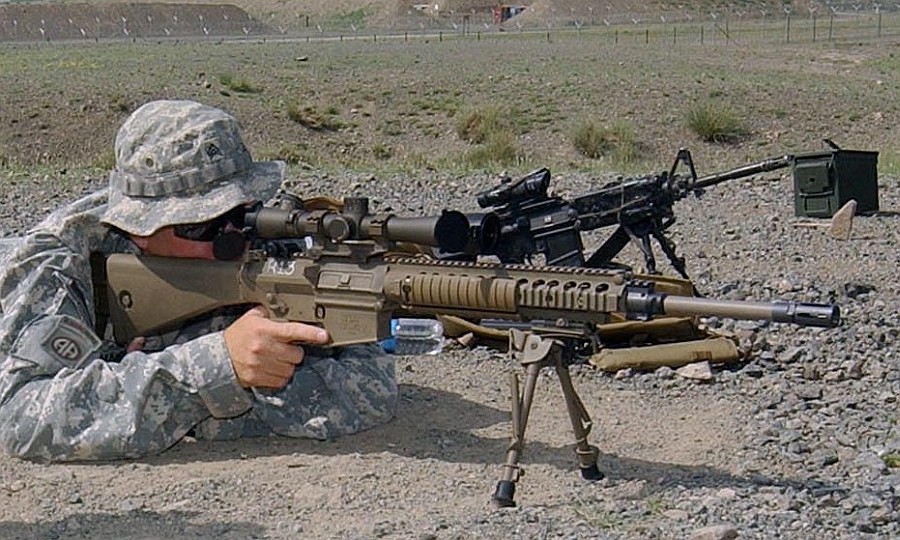

US Army File Photo
| M110 SemiAutomatic Sniper System (SASS) |
| Calibre: |
7.62x51mm NATO (.308 win) |
| Operation: |
Direct Gas-Operated |
| Feed: |
10 or 20 Round Detachable Magazine |
| Weight: |
13.7 lb (6.23 kg) empty with optics & bipod
Suppressor adds 1.96 lbs (0.89 kg) |
| Length: |
42" (1066mm) - no suppressor, stock collapsed
46.5" (1181mm) - With suppressor, stock collapsed
48.25" (1226mm) - With suppresor, stock extended |
| Sights: |
Leupold Mk4 3.5-10x40mm M2 with Illuminated TMR, earth brown
plus detachable emergency iron sights. |
| Barrel: |
20" length, 1:11" twist, 5 radial land grooves |
| Stock: |
Adjustable length. |
| Max Effective Range: |
800+ meters (875 yards) depending on snipers ability |
| Expected Accuracy: |
.5-1.0 MOA with M118LR, M118SB, M852 |
The M24 SWS has been the US Army standard issue Sniper Rifle for over 20 years now and it has done a great
job, especially for a quickly developed weapon system. I loved the ones I used during my time and it has had
a very successful service life and continues to do so, especially with the recent news that the US Army will
be rechambering them in 300 Win Mag. But the recent combat experience in Iraq has changed the operational
deployment of snipers within the US Army. The US Army found that their snipers were engaging in much closer
and faster paced engagements and many of the sniper teams were getting most of their kills using sound urban
sniping tactics combined with their M4 and M16A4 rifles (especially with the 77gr ammo). It became apparent
that a new rifle needed to be added to the inventory that would better suit the needs of the modern urban
combat zone as well as the traditional sniper role.
The US Army put out a request for proposals and received prototype rifles to be tested for the
SemiAutomatic Sniper rifle System (SASS). Knights Armament Company (KAC) has been building the SR25 in various
forms, such as the Mk11 Mod 0, for various Special Operations units for a number of years and this experience and history played
a role in their rifle being adopted as the XM110 SASS in 2005. The US Army had specific requirements for sound
suppressors and other features and the KAC made the required changes to their SR25/Mk11 rifles to meet these
requirements. The rifle moved from Experimental (XM110) to standard (M110) a few years after the 2005 adoption
date and with it came a few changes including an adjustable buttstock for length of pull only,
sling swivel sockets or flush cups, a double sided bolt catch, and a button on the folding front sight to allow
it to be locked into position.
After many years of M1C's, M1D'sa>,
M21's as the US Army's primary sniper rifle, the
M24 SWS was a return to a bolt
action sniper rifle for the army. The M110 now brings the Army back into the realm of semiautos. The
operation of the M110 is very similar to the M16 which the Army likes to do to reduce required training but
there are downsides to a semi-auto. Some of these downsides are that they are not as well suited to the
traditional sniper role due to their shape and the fact that they fling brass all over the ground which can
compromise your position and potentially leave target identifiers, not to mention getting your ghillie tangled
in the action of a semi-auto is never fun. But one of the things the US Army was trying to address was getting
more firepower on target with quicker follow up shots which the Semi certainly will do better than a bolt action.
Another new feature with the M110 compared to the M24 is the addition of a suppressor as part of the platform.
The combat experience in built up areas (Urban, MOUT) showed the need for suppressors to aide in the protection
of the snipers by deception and concealment. The suppressor has developed into an integral part of many sniper
teams over the past decade and I feel this is a good move on the part of the Army and the M110 requirements.
The M110 suppressor is a stainless steel unit that is 14.25" long and weights 1.96 lbs, is a quick detachable design
and is rated at a 30 db reduction. While
full power loads do still produce the sonic crack from the bullet, the report of the rifle is greatly reduced and
determining the direction of the shooter from just that crack is very difficult. The M110 has a shorter 20" barrel
which means that adding the suppressor to the rifle makes it just a few inches longer than the M24 and the weight
is very similar. Having that added advantage of the suppressor is nice to have and yet it is also quickly
and easily attached, or detached, to the rifle adding additional flexibility to only use it if you need it, though you best keep
track of your point of aim change when the suppressor is on vs. when it is not.
The Day Optic Device (DOS) is the Leupold Mk4 3.5-10x40mm with M2 knobs, Illuminated TMR reticle and finished in
earth brown. We reviewed this scope a number of years ago here: Mk4 3.5-10x40mm Brown.
The M24 used the Leupold Mk4 10x40mm Ultra M3 and it is an excellent scope, very durable and high quality. This
new scope on the M110
continues the partnership with Leupold and is a very good scope with good flexibility which includes a
BDC elevation knob calibrated for the M118LR ammo. The elevation clicks are .5 MOA per click compared to
1 MOA per click on the M24. This requires that you overlap more than one rotation once you get beyond
800 meters on the BDC. The knobs on the M24 goes to beyond 1000 meters in less than one revolution, but you get
the better granularity of adjustment with the M2 knobs on the M110. The scope is also a variable power which is
more useful for the defined role the M110 was expected to operate in, closer but more rapid engagements. Being
able to dial down to 3.5x gives you a lot bigger field of view but still makes you extremely effective to about 500
meters. The one thing I thought the scope could of benefited from was a FFP reticle so that you could not only
mil your targets on any power, but also use your mil hold offs for moving targets, windage, etc. Not to mention,
in the stresses of combat, it would be nice not to have to remember what power you are set at when holding off
or estimating range.
The reticle on the M110 leupold scope is an illuminated reticle, and yes, it does introduce something else to break
in the field, but the reticle will continue to work if the battery dies or the illumnation fails, it just will not be
illuminated. The illumination does help with
low light conditions, something that is nice for all combat conditions.
For when the light is no longer low, but rather non-existent, the M110 is setup to accept the
AN/PVS-26 Universal Night Sight which is mounted in front of Leupold scope. The PVS-26 is a high power night vision
scope that essentially adds night vision capability to the standard DOS and does not impact the point of aim of the
DOS. When the M24 was designed, this type of technology did not exist, and it is excellent to include it on this
rifle. This allows for easy conversion to night capability without altering any zero data. Of course, some weight is
added but the increased flexibility and capability of the rifle is another added benefit for the rifle. The full rail
along the top of the rifle does allow for the future use of additional new devices in the future to further expand its capability, which
of course includes swapping scopes in an emergency or even mission specific DOS.
The US Army actually recommends a break-in period for the M110 which is an indicator that those responsible for the
documentation and adoption of the M110 is aware of modern firearms practices. They also have a few other interesting
recommendations for the M110 in which they state the barrel life should be better than the 5000 rounds of the M24
(the M24 routinely goes beyond that 5000 rounds). The US Army also advises that to preserve the effectiveness of the
QD suppressor, that the sniper not fire more than 20 rounds of sustained fired through the suppressor which equates
to 5 rounds a minute for 4 minutes. In a sniping environment that should not be an issue, but there are times in
combat where this may become an issue during a firefight. Of course, there is no such limitation when the suppressor
is detached.
There is a set of backup iron sights (BUIS) that consists of a rear match grade style peep aperture and front iron sight,
both the front and rear sights fold and are fairly accurate. The sights also can stay mounted on the rifle when the
scope is mounted and do not interfere with the scope. This is a nice feature to have that the M24 could not do. Not
that you use the back up sights much, but it is still nice to be able to zero them, and then leave them mounted when
you put the scope on for use when all else fails.
As mentioned earlier, the operation of the M110 is very much like the M16 and will be very familiar to the any soldier,
with just a few differences the additional training is quick and the sniper should quickly be up to speed. Accuracy of
the M110 has been good with typical accuracy between .5 – 1.0 MOA depending on ammo. The M118 (Special Ball), M118LR and
M852 (168gr) ammo have all been approved for use in the M110 and in combat. The max effective range is listed by the US
Army as 800 meters or longer depending on the skill level of the shooter. As many 308 shooters know, that max range is
largely weather dependent as well, but with M118LR ammo and a good sniper, I would put that max effective range at 1000m
or so. These rifles combined with M118LR have been good performers.
One question that was not initially answered with the original order of XM110 and M110 rifles was whether this was a
replacement for the M24 or not and the Army was somewhat unclear on the matter. The initial order of M110's was far
fewer than there were M24's in service so it was my personal opinion that it was going to be fielded as a complimentary
rifle to the M24 and not a replacement. As time went on, the Army was indicating it as a replacement, but yet no M24's were
removed from service and the numbers were still far too low to be a replacement. As it turns out, the M24 SWS was recently
given new life with the announcement that the M24's would be converted to the 300 Win Mag cartridge and that the M110 and
M24 would work side by side. I am not sure how many sniper units will get both systems and exactly what the time frame
is on the M24 conversions, but I do know that this tandem of rifles should make an excellent battery of rifles to use
for a given sniper team. These two rifles together should cover a very wide assortment of shooting and combat conditions
that a sniper team would find itself in.
With the announcement of the M24 conversion to 300 Win Mag also came the adoption of the Mk 248 Mod 1 ammo which
uses a 220gr Sierra Match King bullet launched at 2850 fps. This will greatly expand the range of the M24 up
to potentially 1500 meters and provide a traditional bolt action sniper rifle. The M110 then will fill the role
of a closer in, higher firepower rifle with suppressed capability that will work well in urban, closer range,
and more intense combat scenarios. Together, you have a very formidable duo of rifles. I like this setup for our US
Army snipers as it provides them with a lot of flexibility and capability, exactly what they need.
