Thanks to Ivan for the images and help with the info.
| Caliber |
7.92 x 57 Mauser |
| Action |
Gas operated semi-automatic |
| Length |
44.69" (1135mm) |
| Weight |
9.24 lbs (4.2 kg) |
| Barrel Length |
21.65 inches (550mm) |
| Magazine |
10 round detachable box |
| Sight |
Standard Kalashnikov iron sights |
| Teloscopic Sight |
M76 4x24mm (PSO-1) |
| Stock |
Slightly modified Kalashnikov wood |
| Max Effective Range |
800+ meters (875+ yards) |

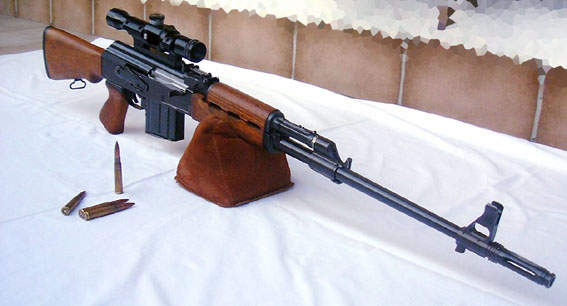

The M76 is a modified AK-47/74 that has been accurized with a longer and heavier barrel and a
modified stock that is more comfortable and ergonomical. The M76 has also been chambered in
7.92x57 Mauser, a much better long range caliber then either the 7.62x39mm or 5.45x39mm calibers
of the rifles its derived from. The M76 Teloscopic sight is essentially a Russian PSO-1 with
active IR illumination detection ability and a lighted reticule. Its calibrated with a BDC
out to 1200 meters, but thats fairly optimistic for the performance of the rifle. The rifle
also comes with a 5x80mm passive night vision scope, which appears to be about the equivilent of
a gen II night vision device. (Good to about 500 meters on a bright moon, clear night).
The rifle is comfortable to shoot and the 7.92 Mauser offers pretty good ballistics, with 800
meters being an acheivable range for the average sniper, and 1000 meters for the expert. The
recoil is light, but there can be a heat problem with successive rapid fire shots. Overall, the
rifle is a solid "field" sniper system with about 1.5 - 2.0 MOA and is very functional, as proven
in Bosnia and Kosovo.
Additional Images
Side Profile
In action
On deployment
Image 1 courtesy of Tomaz
Image 2 courtesy of Tomaz
