H&K MSG90

Image courtesy of HKPRO.COM
MSG 90
| Caliber: |
7.62mm x 51 |
| Design Objective |
Semi-automatic rifle for single fire |
| Operation |
Recoil-operated delayed blowback bolt system, firing from closed bolt position |
| Barrel |
Cold-forged, quenched and tempered barrel, 600mm long |
| Trigger |
Standard trigger with a constant trigger pull, approx 15 N
Vertically adjustable trigger shoe for widening the trigger |
| Stock |
Butt stock with lengthwise adjustable butt cap and vertically adjustable cheek-piece |
| Sights |
Telescopic sight mount for different types of daylight and night sight featuring STANAG fitting dimensions |
| Magazine |
5-round or 20-round magazines at option |
| Features |
Handguard with T-way for fixing a firing sling or mounting the bipod |
The MSG90 was developed as a cost effective alternative to the PSG-1,
it has the same operating system and trigger. It features an adjustable
stock, but not as fancy as the PSG-1 and it weighs 3 pounds less. The MSG90
makes a great designated marksman rifle (DMR), and in fact, the USMC
evaluated 6 of them for their DMR contract. Ultimately the MSG90 was ruled
out because it was not retrofitable to .300 WM.
The MSG90 can be expected to shoot 3/4 MOA with good ammo

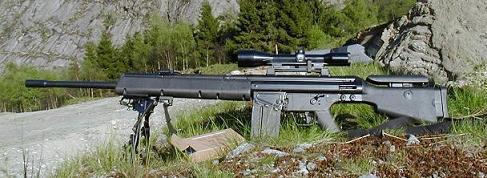

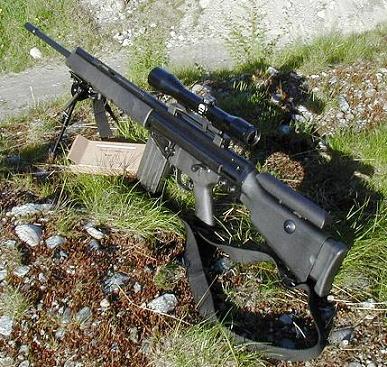

Thanks to Svein for the following images
